Twin Flat Non Sheathed Cord

Twin Flat Non Sheathed Cord

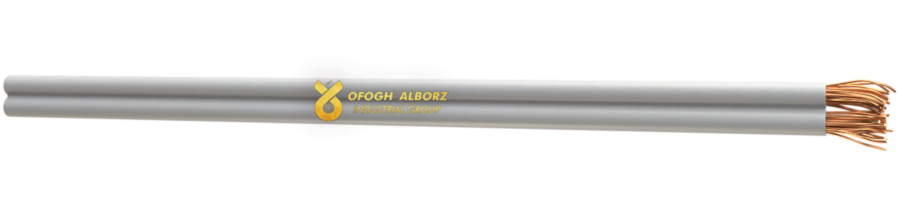

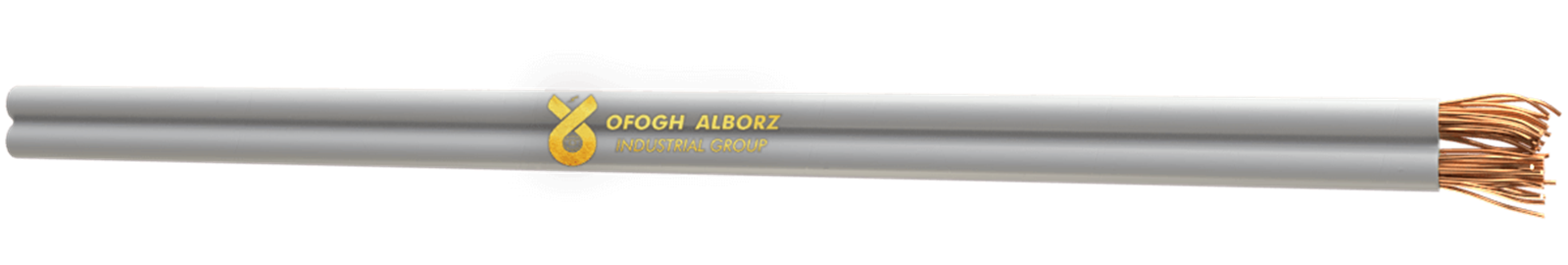

The above wires consist of two Class 6 copper conductors that are parallel to each other, covered by a white PVC insulation.

The above wires are used for wiring the building, such as chandelier lighting, and in wiring some electrical appliances.

Due to the low cross-sectional area of ​​this type of wire, it should be noted that they are not suitable for using high-consumption electrical appliances.

Due to the single sheathed and the type of use of this wire, the insulation used in it is PVC type D, which has a high quality and is resistant to stress and abrasion caused during wiring. Therefore, the use of wires that insulation is easily separated from the surface of the wire and are brittle can cause the wires to connect.

Ofogh Alborz Company produces flat Ribbon cable based on ISIRI 607-5 national standard, specific(characteristic) code (607)42.

The abbreviation for these wires is H03V-H.

The following table shows the specifications of the above abbreviation:



H

Designed based on harmonized standards

03

300/300 V

V

PVC Insulation

H

Flexible conductor (Class 6)

The production of this type of wire is done in accordance with the relevant standard for the following sizes and the use of higher sizes is not recommended due to its non-standard:



Approximate weight

) gr/m)



Maximum Ohmic resistance (Ω/km)

Current capacity

(A)

Dimensions

mm))

Insulation thickness

mm))

Nominal cross section



24

39

9

2.6x5.6

0.8

0.5

30

26

13

3.0x6.1

0.8

0.75
