Fixed Installation Cables

Fixed Installation Cables

CU \ PVC\PVC

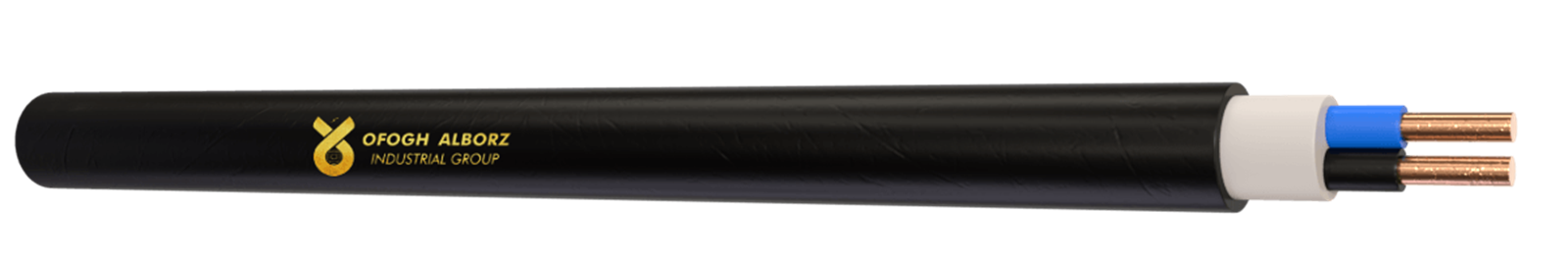

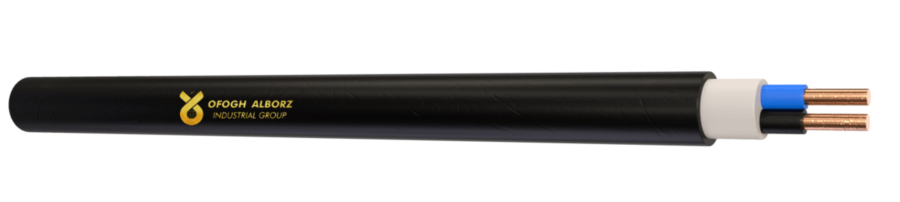

Fixed installation cable or light cores cable:

A set of insulated cores that are placed in a general sheath of PVC is called a light fixed core cable.

The copper used in these wires is high purity, annealed and class 1 or 2 (according to ISIRI 3084 standard).

PVC insulation is type C and sheath PVC is type ST4.

The national standard for the production of these cables is ISIRI 607-4 with the characteristic code (607)10 , which is equivalent to the international standard IEC 60227-4.

The abbreviation codes H05VV-U and H05VV-R (HD Standards) are used to identify these sizes, which of course is equivalent to the NYM abbreviation code in accordance with DIN VDE standards.

The above cables are used in the construction industry, electronic equipment, fixed electrical installations.

The following table shows the specifications of the above abbreviations:

H

Designed based on harmonized standards

05

300/500 V

V

insulation and Sheath PVC

-U

Solid conductor (Class1)

-R

Stranded conductor (Class 2)

The technical specifications of light core cables are as follows:
