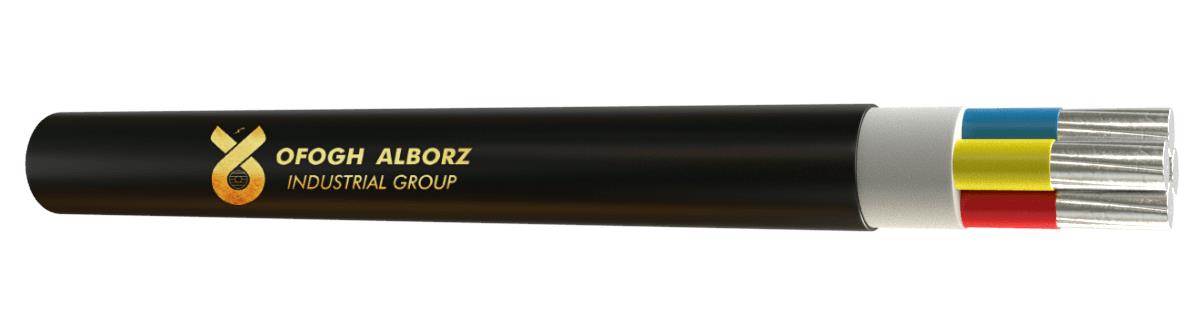

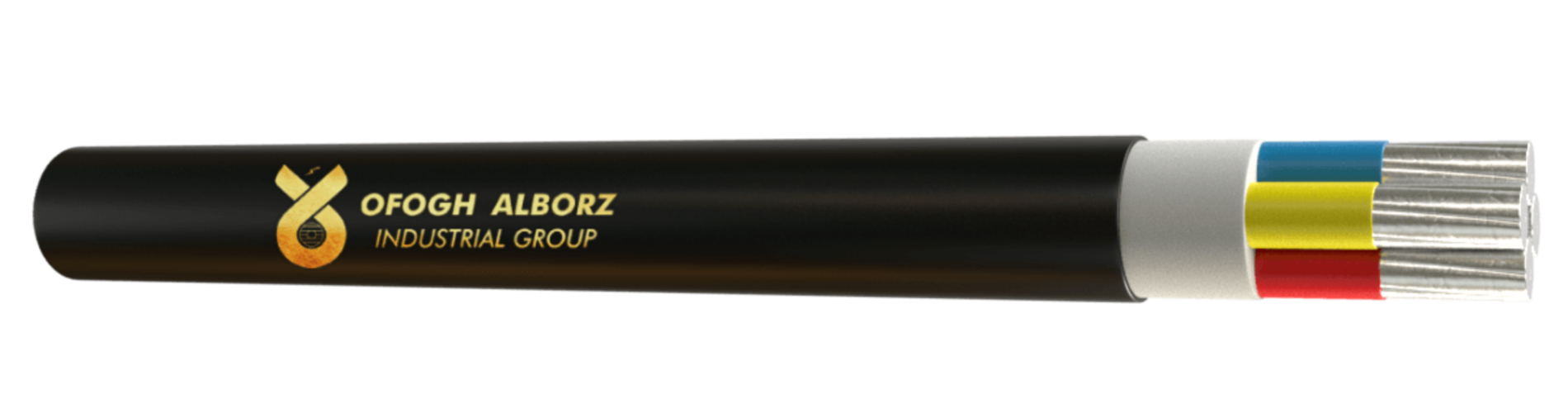

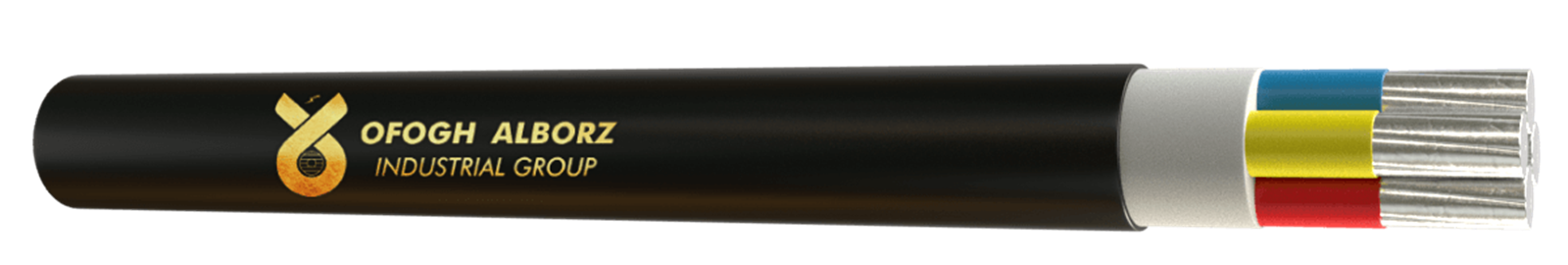

NAYY, AL/PVC/PVC
Low voltage cables with aluminum conductor , PVC insulation and sheath.
In the above structure, copper is used as the main conductor of the cable. The type of insulation and sheath used are polyvinyl chloride or PVC materials.
It is possible to use filler materials in multi-core cables to round the outer surface of the cable, which is not mandatory in the standard.

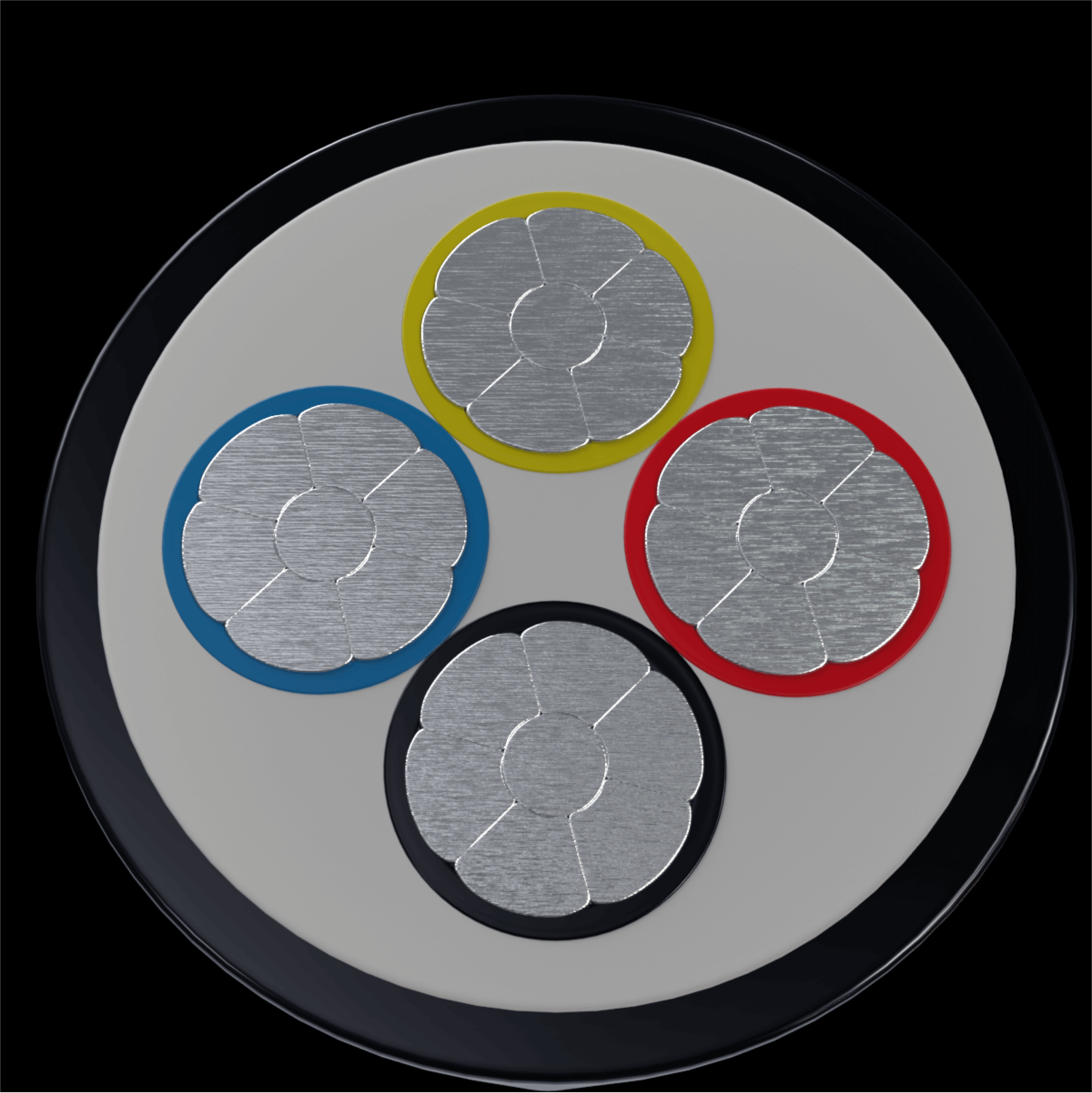

The conductors of the above cables are produced as solid core (so-called RE), Circular starnded (RM), shaped stranded (sector -SM-) or as compact conductors (RM/V).
0.6/1 kV is the most used of this group of products. The routine technical specifications of this type of cables are as follows:
